Product Description

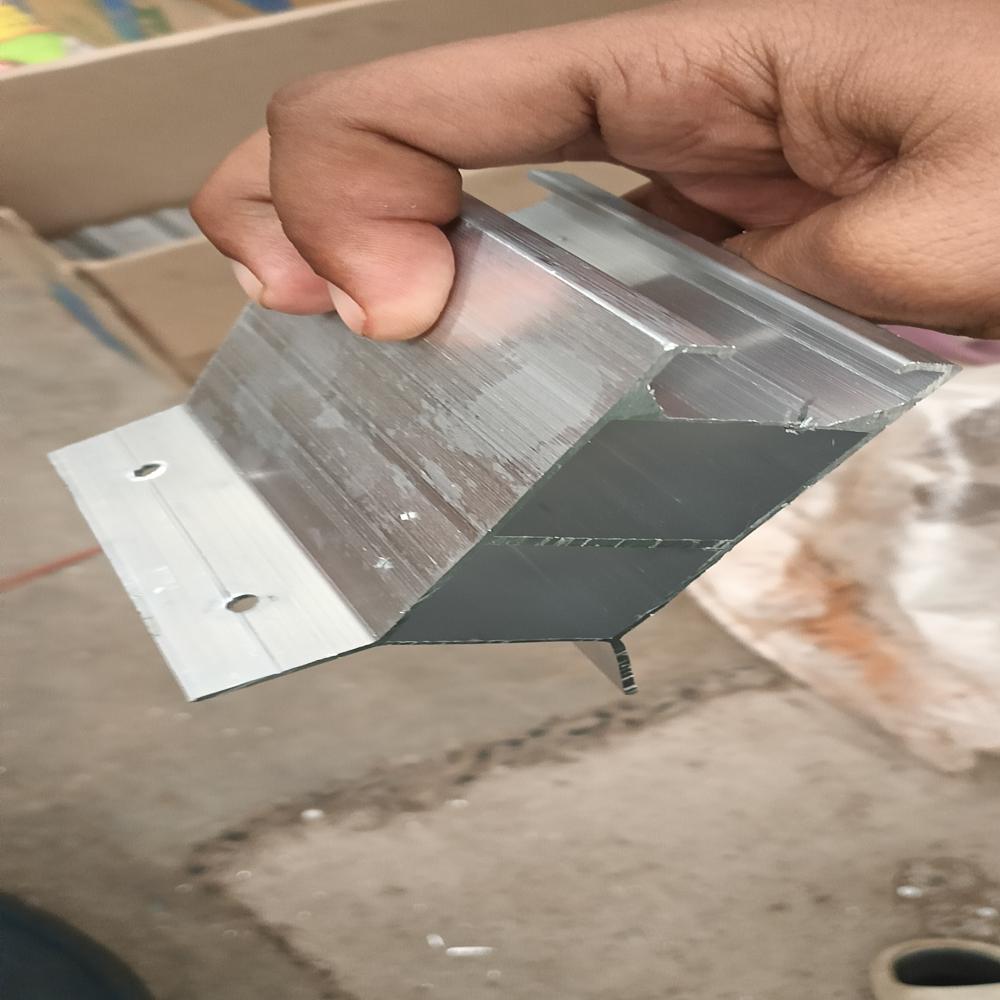

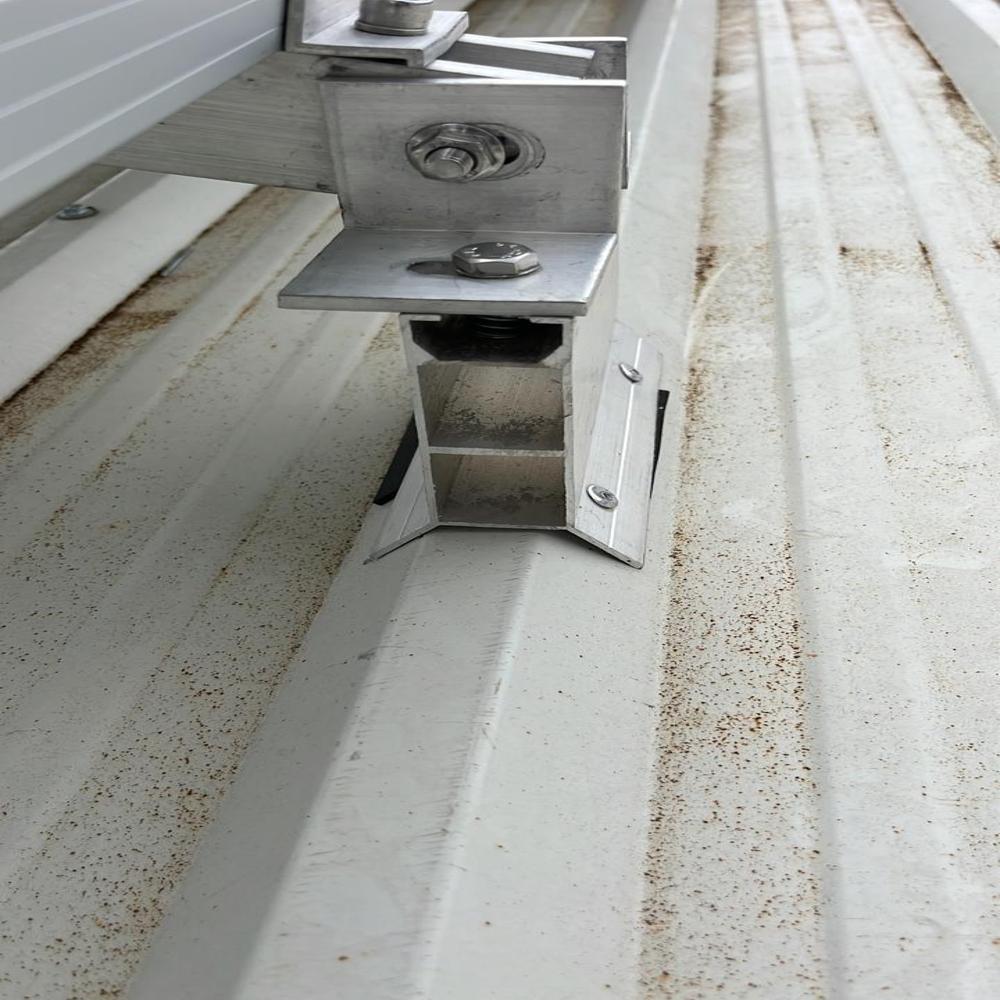

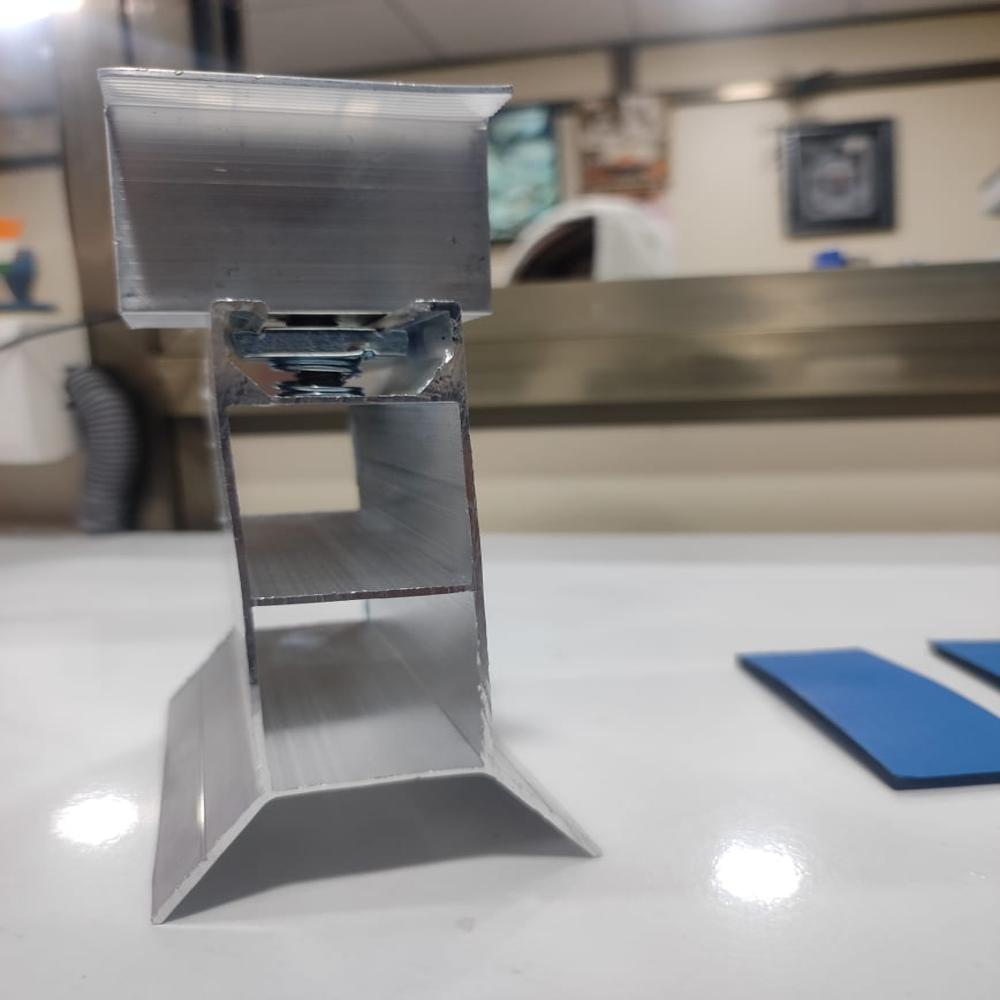

A 105100 mm aluminium mono rail structure for landscape-oriented solar panel mounting is typically fabricated from 6063-T6 grade aluminium, offering an optimal combination of corrosion resistance, structural strength, and lightweight properties suitable for long-term outdoor use; the extruded profile, measuring 105 mm in width and 100 mm in height, is designed with a hollow or multi-cavity section incorporating internal stiffening ribs to ensure high load-bearing capacity and minimal deflection under wind and dead loads, particularly for horizontally (landscape) mounted photovoltaic modules; the rail commonly features integrated T-slots or channels along its sides and top surfaces for easy and secure installation of mid clamps, end clamps, grounding components, and fastening accessories, allowing flexible positioning and rapid assembly; an anodized surface finish (typically 1025 microns) enhances durability by providing protection against UV exposure, moisture, and environmental corrosion; the system is engineered to be compatible with rooftop or ground-mounted solar structures, using base supports, brackets, and anchor fasteners to maintain proper panel alignment, spacing, and tilt while accommodating thermal expansion, ensuring a stable, efficient, and low-maintenance mounting solution for solar energy applications.
Versatile and Durable DesignBuilt from corrosion-resistant aluminum with a robust zinc coating, this structure delivers long-lasting performance in challenging environments. Its customizable dimensions and foundation options (pile-driven, precast, or concrete pad) make it adaptable to diverse site conditions, while the hot dip galvanization adds an extra layer of durability against wear and weather.
Optimized for High Efficiency and SafetyEngineered with a mounting angle range of 0 to 30, the structure maximizes energy capture throughout the year. Compliance with IEC fire resistance standards ensures enhanced safety, and its wind and snow load ratings guarantee reliability in harsh climates. The structure maintains stability for system voltages up to 1500 V DC and is perfect for landscape module configurations.
Simplified Installation and Low MaintenanceDesigned for easy assembly, the structure is shipped knocked down in protective pallets. Its modular design means it can be erected quickly with minimal labor. Periodic inspections are recommended, but maintenance requirements are low, making it a cost-effective solution for large-scale solar projects.
FAQ's of LANDSCAPE STRUCTURE FOR SOLAR:
Q: How is the landscape structure for solar panels installed?
A: The structure can be installed using pile-driven, precast, or concrete pad foundations, depending on site conditions. All components are shipped knocked down in pallets for easy transport and on-site assembly. Installation is straightforward, typically requiring standard construction tools and minimal specialized labor.
Q: What advantages does the hot dip galvanized finish provide?
A: The hot dip galvanized finish (minimum 80-100 m) offers superior corrosion resistance, significantly extending the lifespan of the structure. This protective coating is especially beneficial in harsh environments, ensuring reliable performance for over 25 years.
Q: When should I choose this structure for my solar project?
A: This landscape structure is ideal for commercial and utility-scale solar power plants, especially when high wind and snow loads are concerns. Its customizable size, high load capacities, and compatibility with both crystalline and thin film modules make it suitable for diverse project requirements.
Q: Where can the structure be deployed?
A: It is designed for ground-mounted solar applications and can be installed in a wide range of environments thanks to customizable foundation options and resistance to extreme temperatures (-40C to +85C).
Q: What is the benefit of the landscape module orientation?
A: Landscape orientation allows for more efficient use of available space, improved cable management, and optimal inter-row shading performance. This orientation can also enhance maintenance access and overall system efficiency.
Q: How does the structure accommodate various solar module types?
A: The mounting system is compatible with both crystalline and thin film solar modules and supports sizes and cell counts as specified per project. Its adjustable brackets and flexible sizing ensure secure and efficient installation of multiple module types.
