LONG RAIL STRUCTURE

LONG RAIL STRUCTURE About

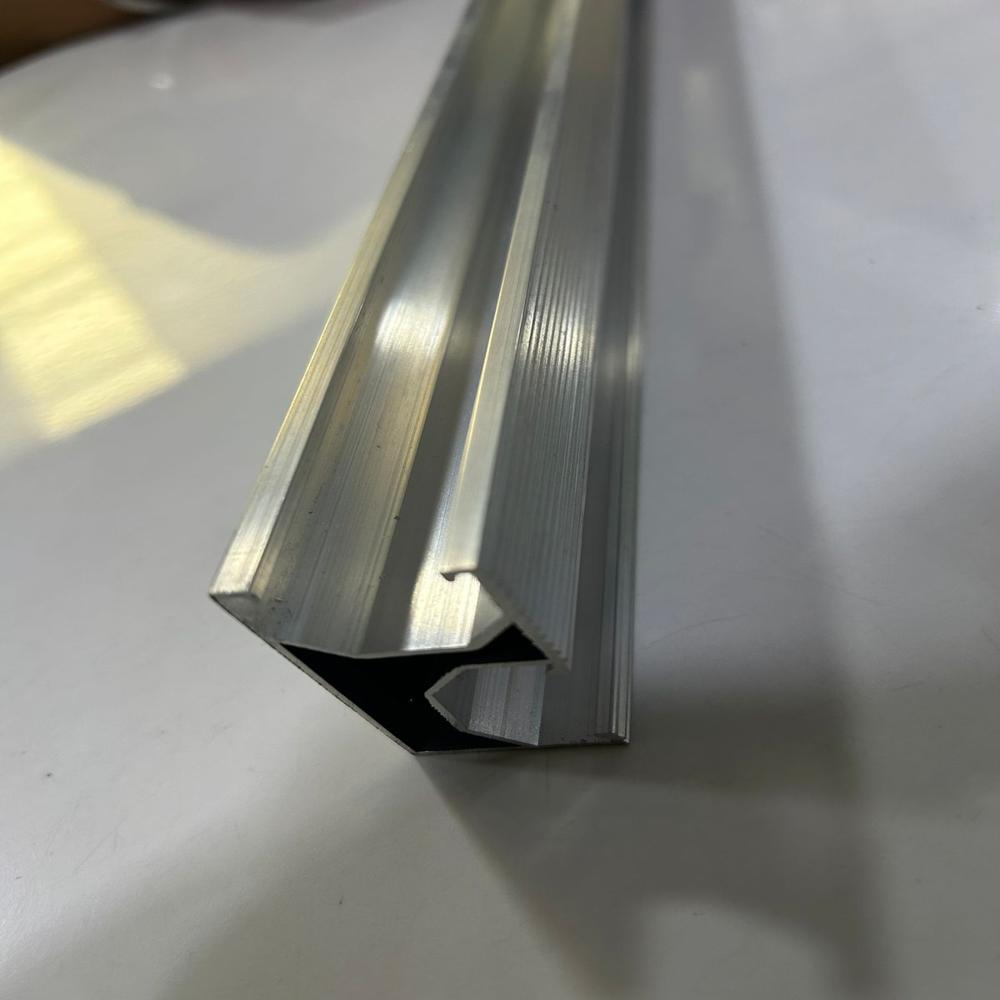

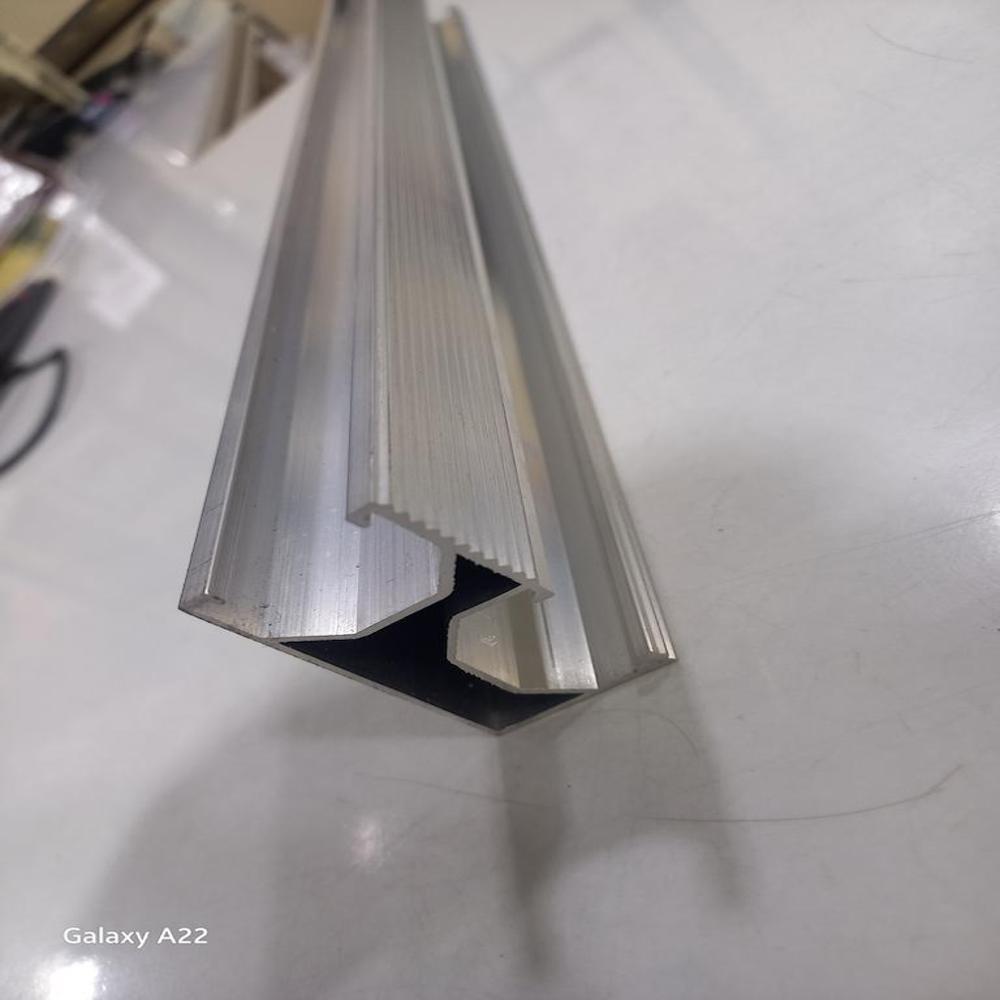

An aluminium solar long rail structure is a durable and lightweight photovoltaic (PV) module mounting system that utilizes continuous extruded aluminium rails, typically manufactured from high-strength aluminium alloy grades such as 6005-T5 or 6063-T6, to support and secure solar panels in rooftop or ground-mounted installations. The system consists of long aluminium rails, support brackets or posts, rail connectors, module mid-clamps and end-clamps, earthing components, and stainless-steel fasteners (SS304/SS316), providing excellent corrosion resistance and a long operational life. Designed to withstand dead loads, wind loads, and seismic forces as per applicable standards, the long rail arrangement offers enhanced structural stability, uniform load distribution, simplified module alignment, and easier installation and maintenance. The structure accommodates thermal expansion, ensures adequate module ventilation and drainage, and can be configured for various tilt angles and module layouts to maximize energy generation. Its lightweight construction reduces roof loading and installation costs while delivering reliable

Optimized for Solar Installations

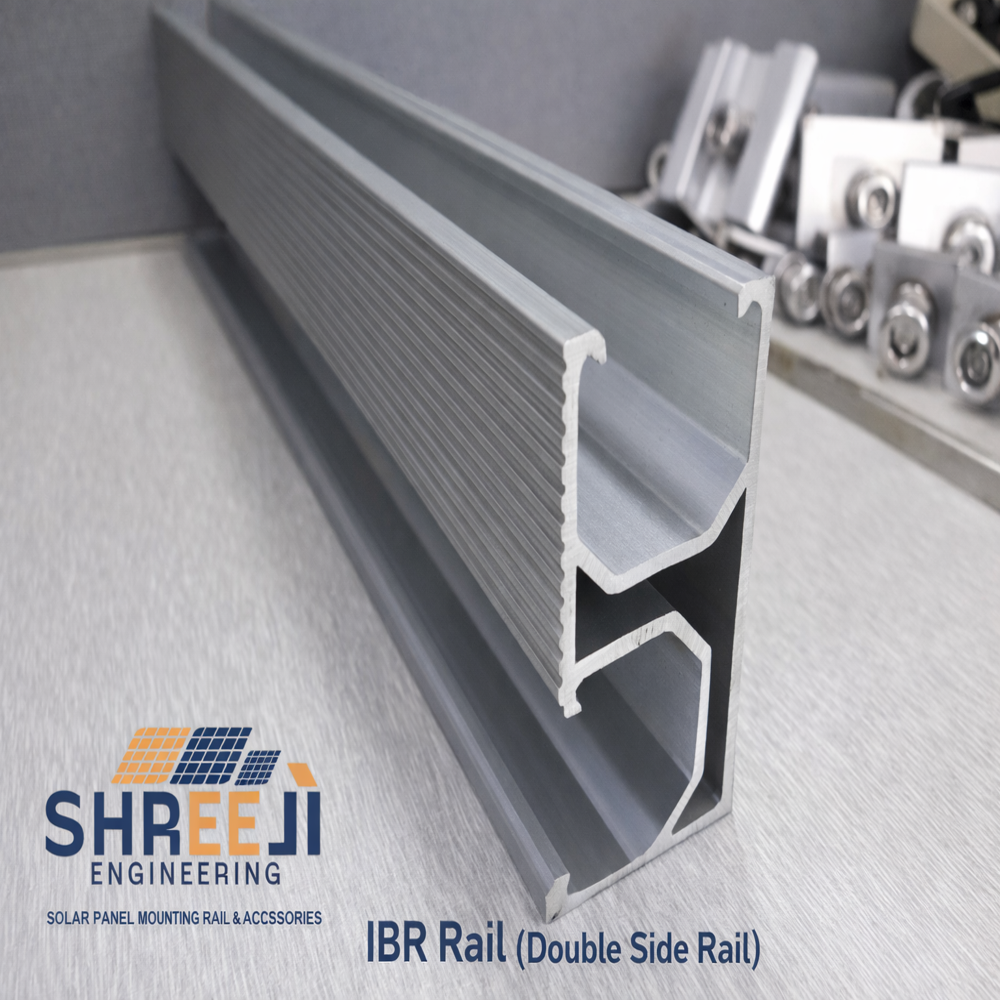

With dimensions perfectly suited for solar applications, this long rail structure enables precise, secure, and efficient solar panel mounting. Its double-sided rail design offers superior adaptability, making it an excellent choice for installers seeking reliability and streamlined assembly.


Durable Construction, Easy Integration

Crafted from high-quality materials and finished with a robust silver fitting surface, this rail withstands demanding environments. Its design supports quick assembly, reducing installation time and ensuring the solar structure remains stable for years.
