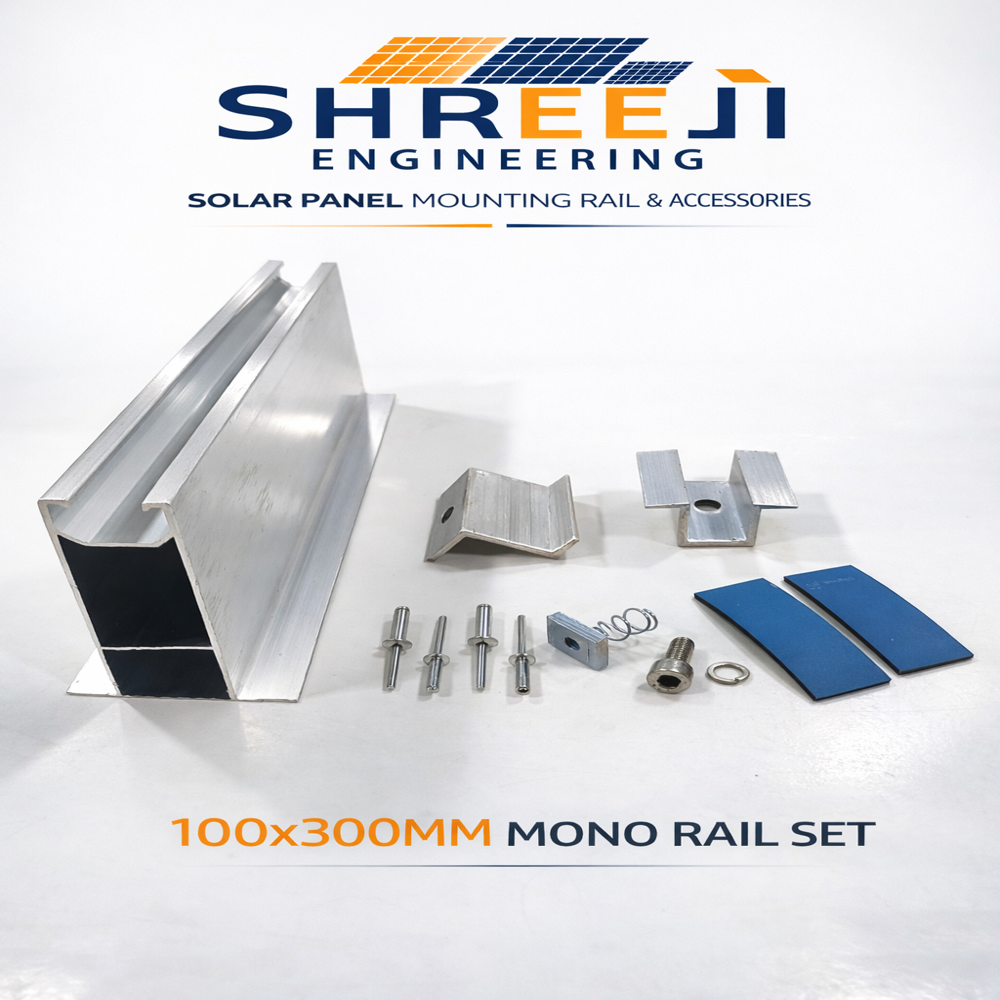

Name: MONO RAIL STRUCTURE
Brand: SHREEJI ENGINEERING
Price: 210.0 INR
Availability: InStock

MONO RAIL STRUCTURE Price And Quantity

Minimum Order Quantity 100 Set

Price 210.0 INR/Set

MONO RAIL STRUCTURE Product Specifications

Weight 300 Grams (g)

Size 100X300MM

Product Type ALUMINIUM

Application SOLAR STRUCTRE

Height 100 Millimeter (mm)

Usage SOLAR STRUCTURE

Material ALUMINIUM

Length 300 Millimeter (mm)

Color SILVER

Type Assembly Tools

Width 50 Millimeter (mm)

Surface 2MM

Feature SOLAR

Product Description

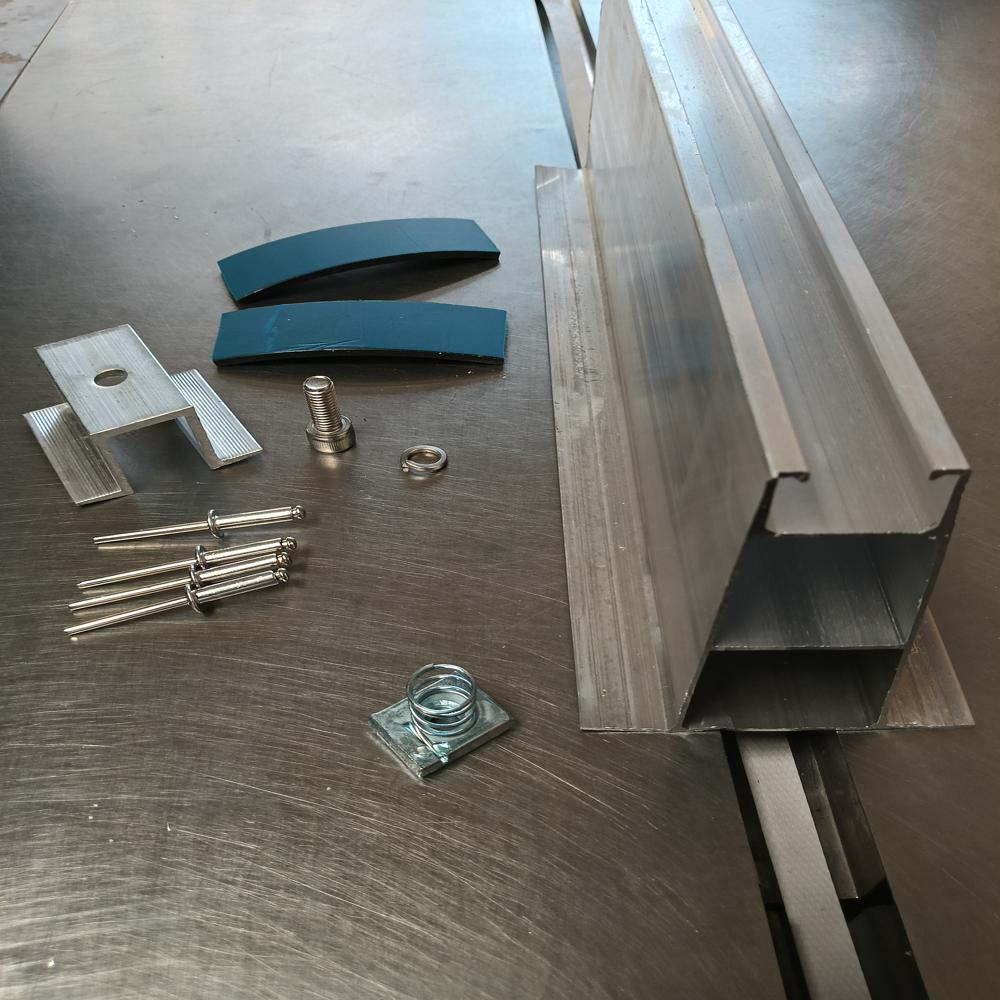

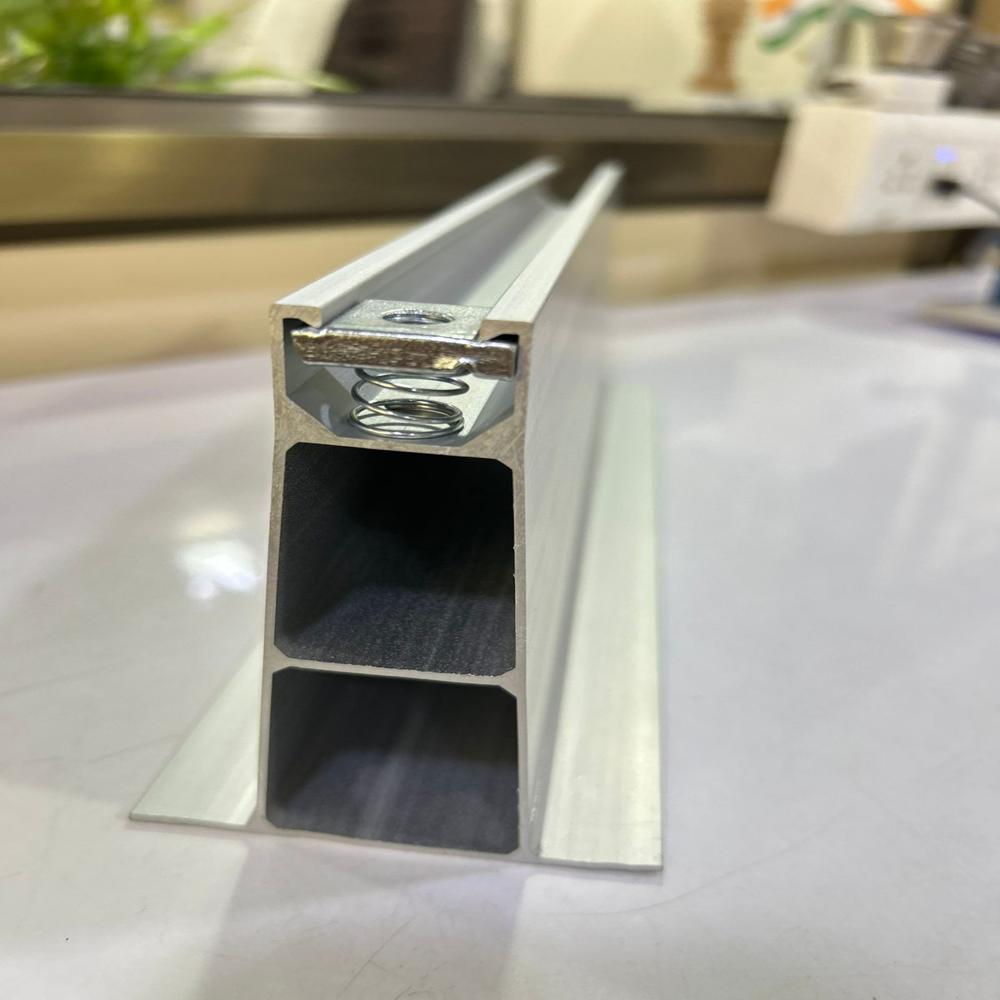

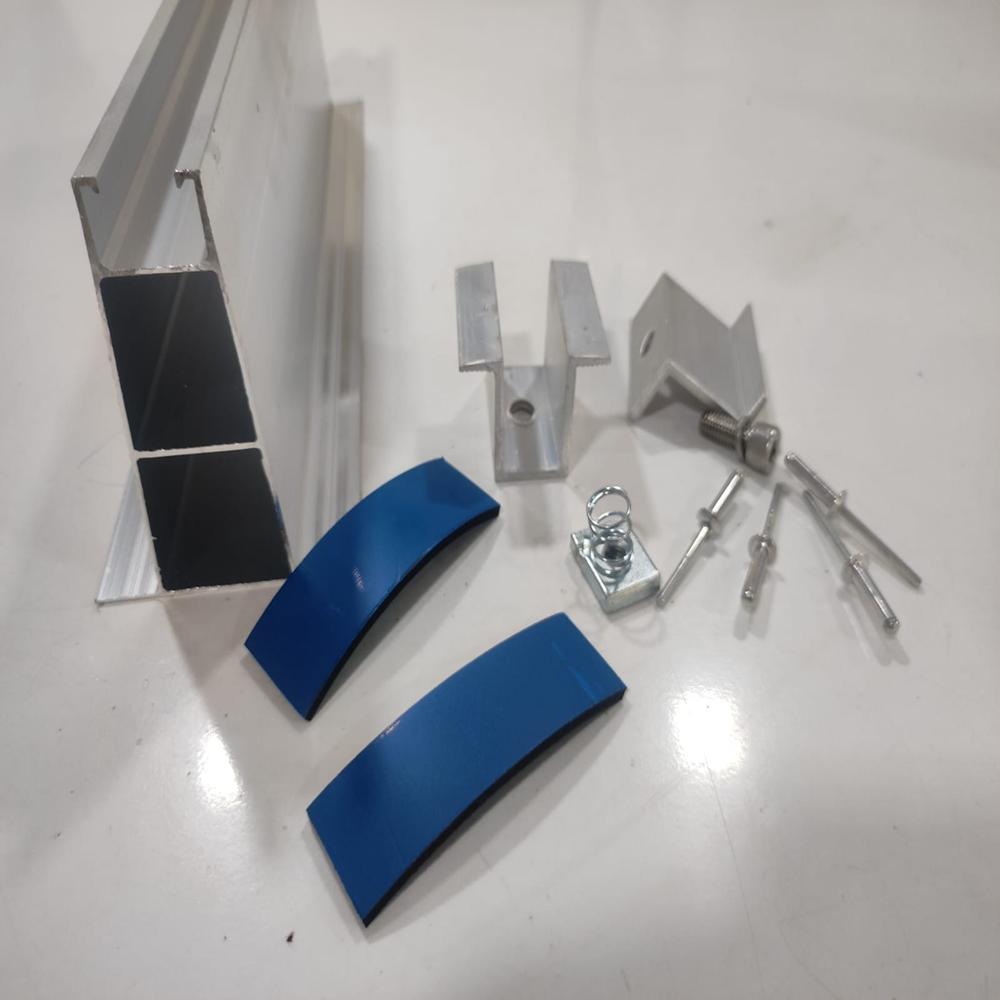

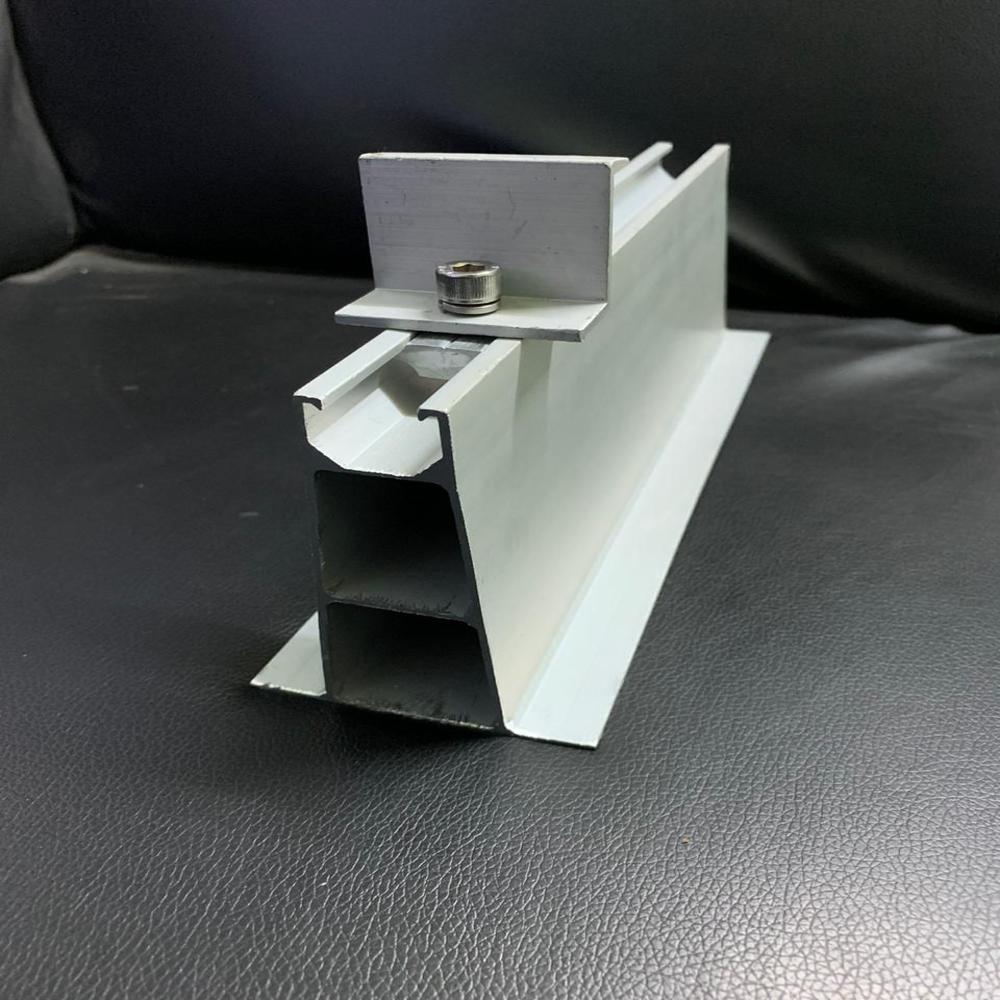

An aluminium monorail solar module mounting structure is a lightweight, high-strength support system designed to mount photovoltaic (PV) panels on a single continuous aluminium rail, typically manufactured from extruded aluminium alloy grades such as 6005-T5 or 6063-T6 for excellent corrosion resistance and durability. The structure comprises aluminium monorails, vertical support posts or brackets, module mounting mid-clamps and end-clamps, splice connectors, and stainless-steel fasteners (SS304/SS316), ensuring long-term structural stability with minimal maintenance. It is engineered to withstand site-specific wind, seismic, and dead loads while maintaining the required module tilt angle and orientation for optimum solar energy generation. The monorail configuration reduces material usage, installation time, and overall system weight compared to conventional dual-rail structures, making it suitable for rooftop and ground-mounted solar projects. Key design parameters include rail span, support spacing, module dimensions, thermal expansion allowances, grounding provisions, and compliance with applicable structural and solar installation standards to ensure a service life of 25 years or more.
