TIN SHAD STRUCTURE

Name: TIN SHAD STRUCTURE
Brand: SHREEJI ENGINEERING
Price: 198.0 INR
Availability: InStock

Price 198.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

TIN SHAD STRUCTURE Specification

Features
Corrosion Resistant, Durable, Easy to Install, High Strength

Efficiency
N/A (structure, not panel)

Maintenance Type
Low maintenance, periodic inspection recommended

Product Type
Aluminum Alloy

Material
ALUMINIUM

Power
150 Volt (v)

Operating Temperature
-40C to 85C

Max Voltage
N/A (for mounting structure only)

Max System Voltage
1,500V DC (as per solar panel compatibility)

Output Voltage
N/A (structure only)

Cable Length
N/A (dependent on solar installation)

Size
Customizable

Dimension (L*W*H)
Project specific, as per solar panel requirement

Color
Metallic Silver (standard), other colors on request

Weight
Varies as per size and capacity (typically 30-120 kg per structure)

Application
Mounting support for solar PV panels on tin/metal roofs

Type Of Technology
Fixed Tilt/Flexible as required

Installation Type
Roof Mounted / Ground Mounted

Load Bearing Capacity
Custom as per panel and site requirements

Fastener Type
Stainless Steel/Hot Dip Galvanized Bolts & Nuts

Packing Type
Disassembled, export standard packaging

Structural Type
Pre-fabricated and Modular

Wind Load Capacity
Up to 180 km/h (depends on design)

Design Standard
As per IS, ASTM or IEC

Inclination Angle
Adjustable or fixed (as per site requirements)

Corrosion Resistance
Superior (for outdoor use)

Usage
Suitable for Residential, Commercial, and Industrial Installations

Life Expectancy
25+ Years

Mounting Options
Standing Seam Clamp, Penetrative, or Non-Penetrative

Finish
Hot Dip Galvanized or Powder Coated

Compatible Module Size
Standard and customized PV module dimensions

Environmental Resistance
UV, Water, and Temperature Resistant

TIN SHAD STRUCTURE Trade Information

Minimum Order Quantity
100 Pieces

Delivery Time
6 Days

TIN SHAD STRUCTURE About

An aluminium tin shed structure is a lightweight, durable, and cost-effective roofing system commonly used for warehouses, factories, workshops, parking sheds, agricultural buildings, and residential extensions. The structure typically consists of aluminium or mild-steel support columns, rafters, purlins, and trusses, covered with corrugated or profile metal sheets (often called tin sheets, though modern sheets are usually galvanized steel, aluminum, or color-coated metal). Aluminium roofing offers excellent corrosion resistance, low maintenance, and a long service life, while the shed design can be customized in various spans, heights, and roof slopes to suit specific requirements. These structures are easy to fabricate and install, provide good weather protection against rain and sunlight, and can incorporate insulation, skylights, ventilation systems, gutters, and rainwater drainage. Depending on the design load, wind conditions, and intended use, the framework is engineered to ensure structural stability, strength, and safety, making aluminium tin sheds a popular choice for both temporary and permanent roofing applications.

Versatile Installation and Custom Design

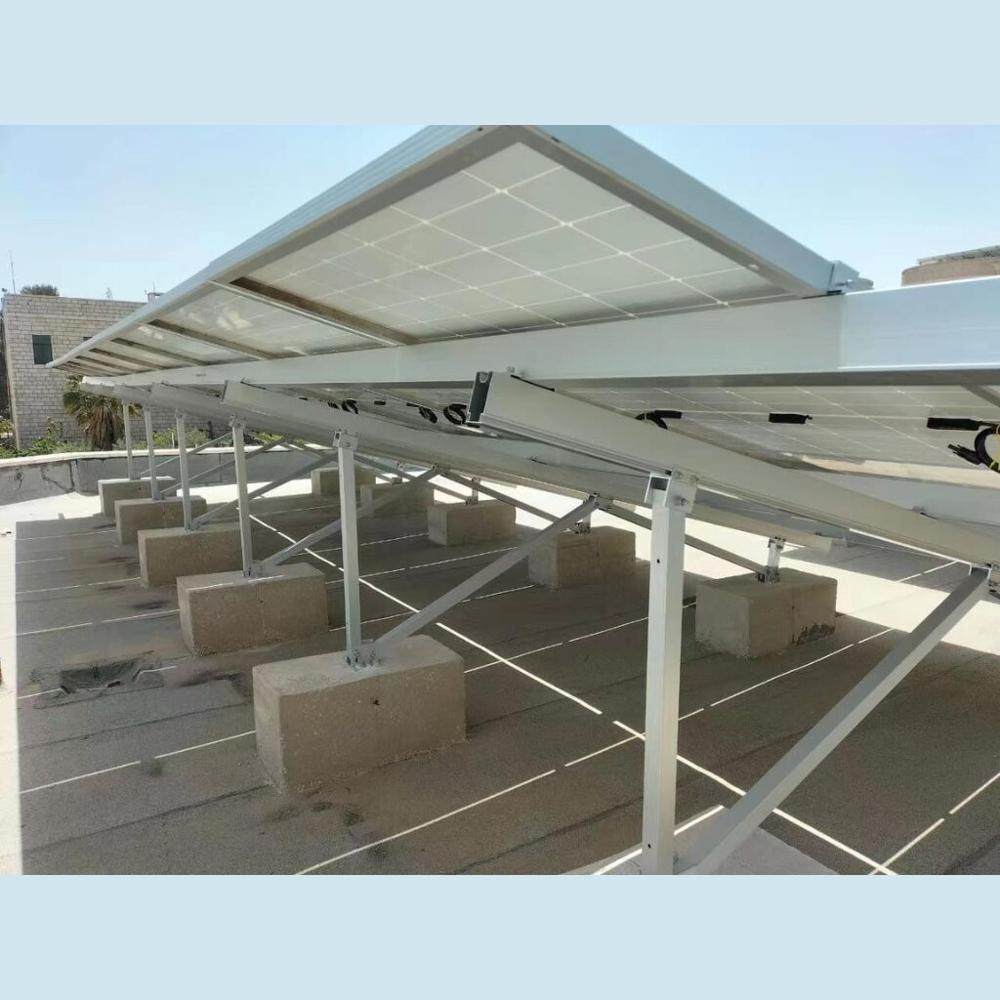

Adaptable for both roof-mounted and ground-mounted PV solutions, our Tin Shad Structure responds to diverse project demands. It accommodates various module sizes, inclination angles, and installation types, while supporting both penetrative and non-penetrative mounting. The system's modular construction enables rapid deployment and easy disassembly for transport, making it highly suitable for projects with unique site requirements or export needs.

Engineered for Durability and Extreme Environments

Built from high-strength aluminium and secured with stainless steel or hot-dip galvanized fasteners, this structure offers outstanding durability and corrosion resistance. It is designed to withstand wind loads of up to 180 km/h and offers resilience against UV exposure, water ingress, and temperature fluctuations from -40C to +85C. These features ensure your solar investment is well-protected for more than 25 years.

Easy Maintenance and Low Upkeep

With a low-maintenance profile, the Tin Shad Structure is engineered to require only periodic inspections, reducing operational costs. Its design minimizes susceptibility to rust and environmental damage, preserving its performance and aesthetic quality over time. Export-standard packaging and disassembled shipment also simplify logistics and on-site assembly.

FAQ's of TIN SHAD STRUCTURE:

Q: How do I install the Tin Shad Structure for my solar PV panels?

A: Installation of the Tin Shad Structure involves positioning the modular frame on your tin or metal roof, fastening it using either standing seam clamps, or penetrative/non-penetrative methods. The system is shipped disassembled for on-site assembly, and detailed instructions ensure a secure fit tailored to your panel size and site requirements. Professional installation is recommended for optimal results.

Q: What makes this mounting solution suitable for harsh outdoor environments?

A: The Tin Shad Structure features premium aluminium construction, finished with hot dip galvanization or powder coating for superior corrosion resistance. Its hardware includes rust-proof stainless steel or galvanized fasteners, making it highly resistant to UV rays, water, and extreme temperatures from -40C to 85C, ensuring reliable outdoor performance over decades.

Q: When should I consider adjusting the inclination angle of this structure?

A: The inclination angle can be set as adjustable or fixed, depending on your installation site and optimal solar exposure. Adjustment is generally done during initial installation or seasonal repositioning to maximize energy yield as sun angles change throughout the year. Site-specific consultation is advised for best results.

Q: Where is this mounting structure most effectively used?

A: This structure excels in residential, commercial, and industrial settings where strong, durable support for PV panels is required on tin or metal roofs. Its flexible design and robust fabrication make it ideal for both new and retrofit solar projects across a wide range of climates and locations.

Q: What is the benefit of using a pre-fabricated and modular solar mounting system?

A: Pre-fabricated and modular construction enables rapid, straightforward assembly and customization to suit individual project needs. It simplifies shipping and handling with export standard packaging, reduces installation time on site, and supports modifications or expansions if your PV system grows in the future.

Q: How does the structure ensure long-term reliability and low maintenance?

A: The use of corrosion-resistant materials, high-strength engineering, and periodic inspection recommendations ensures longevity-over 25 years-with minimal upkeep. Its inherent resistance to environmental stressors greatly reduces the risk of structural failure and the need for frequent repairs.

Q: What module sizes and voltages is this structure compatible with?

A: The Tin Shad Structure is designed to accommodate both standard and custom PV module sizes, with each project tailored for optimal fit. It supports maximum system voltages up to 1,500V DC (as per solar panel compatibility), making it suitable for a broad spectrum of solar panel configurations.
