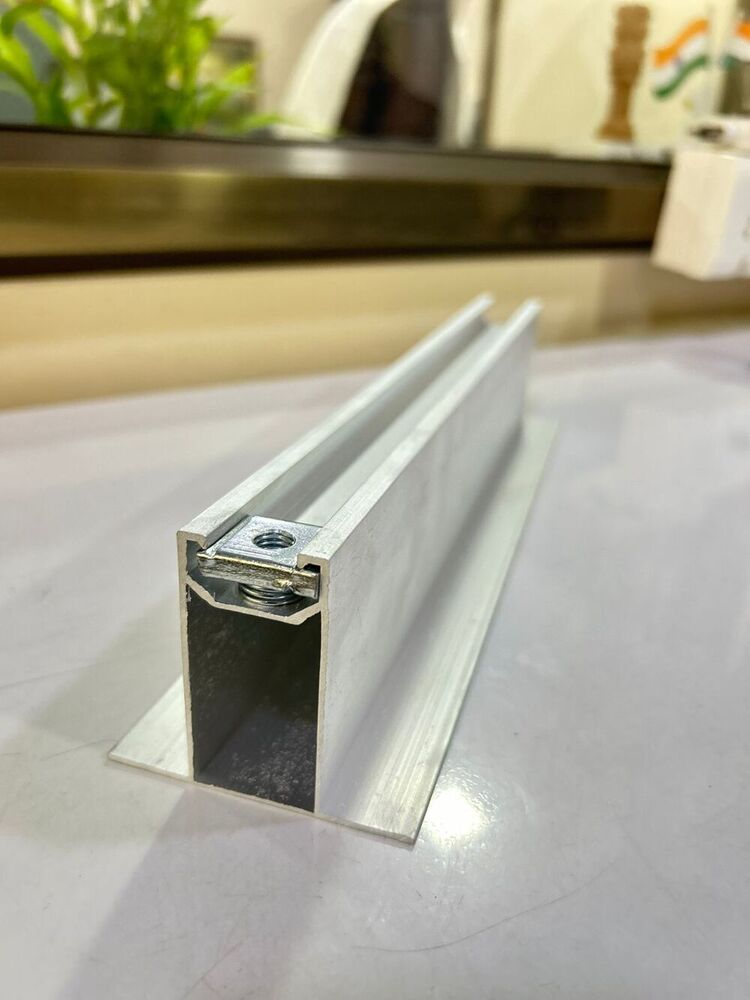

SOLAR PANELL MONO RAIL

About SOLAR PANELL MONO RAIL

Aluminium Mono Rail 100x300 mm  Detailed Information

1. General Description:

• Product Type: Aluminium Mono Rail (also known as single rail or monorail)

• Dimensions: 100 mm (width) x 300 mm (length)  thickness may vary based on application

• Material: High-quality Aluminium alloy (commonly 6061 or 6063 grade for good strength and corrosion resistance)

• Finish:

  • Natural mill finish

  • Anodized (silver, black, or custom colors)

  • Powder-coated (optional)

2. Physical & Mechanical Properties:

• Density: 2.7 g/cm (typical for Aluminium)

• Yield Strength: 240 MPa (varies by alloy and temper)

• Ultimate Tensile Strength: 290 MPa

• Elongation: 10-12%

• Corrosion Resistance: Excellent (especially when anodized)

• Weight: Approximate calculation:
  Volume = 0.1 m  0.3 m  Thickness (m)
  Weight = Volume  Density (2,700 kg/m)

3. Design Features:

• Profile Shape: Flat or custom extruded profile, depending on use.

• Load-bearing Capacity: Dependent on thickness, alloy, and mounting method.

• Mounting: Usually drilled or slotted for bolts, screws, or clamps.

• Applications:

  • Structural support in industrial machinery

  • Rail systems for sliding doors, conveyors

  • Framework in construction or architectural elements

  • Mounting tracks for panels or equipment

4. Manufacturing Process:

• Extrusion: Aluminium mono rails are often made by extrusion to get precise cross-sectional profiles.

• Cutting: Cut to 300 mm length.

• Surface Treatment: Anodizing, powder coating, or polishing for aesthetic and durability purposes.

5. Standards and Compliance:

• Manufactured as per ISO 6362 / ASTM B221 (standards for aluminium extrusions)

• Quality checks for dimensional accuracy, surface finish, and mechanical properties.

6. Customization Options:

• Different thicknesses depending on strength requirements

• Custom anodizing colors

• Pre-drilled holes or slots

• Different alloy grades for higher corrosion resistance or strength
